Portable tramp-oil separation
for individual reservoirs.

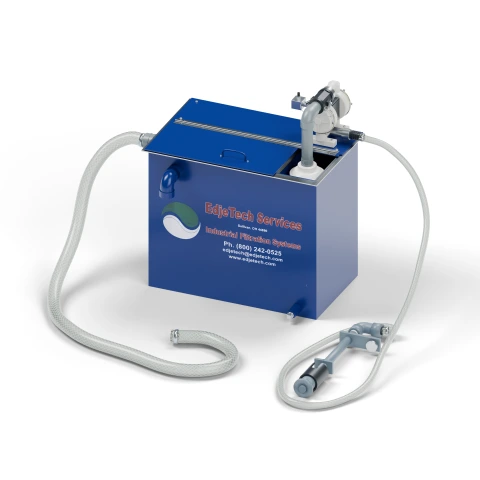

The T.O.S.S. T1 is a portable, skid-mounted tramp oil separator for individual machine sumps, parts washers, and other compatible reservoirs. It provides the same coalescing separation as the floor-standing T.O.S.S. series in a compact 2 GPM configuration.

See the configurationsRequest a quote →
2 gpm
90 to 120 GPH, set at the air valve
<0.5%
tramp oil held in the treated fluid
up to80%
reduction in new fluid purchases · up to 90% less disposal
99%
20-micron oil droplets separated on the first pass
What it is

Tramp-oil separation that moves between reservoirs

The self-contained unit removes free-floating, dispersed, and loosely emulsified tramp oils from an individual coolant reservoir or parts washer and returns clarified fluid by gravity. Each reservoir requires at least three complete volume turnovers, allowing one unit to serve multiple sumps on a planned rotation.

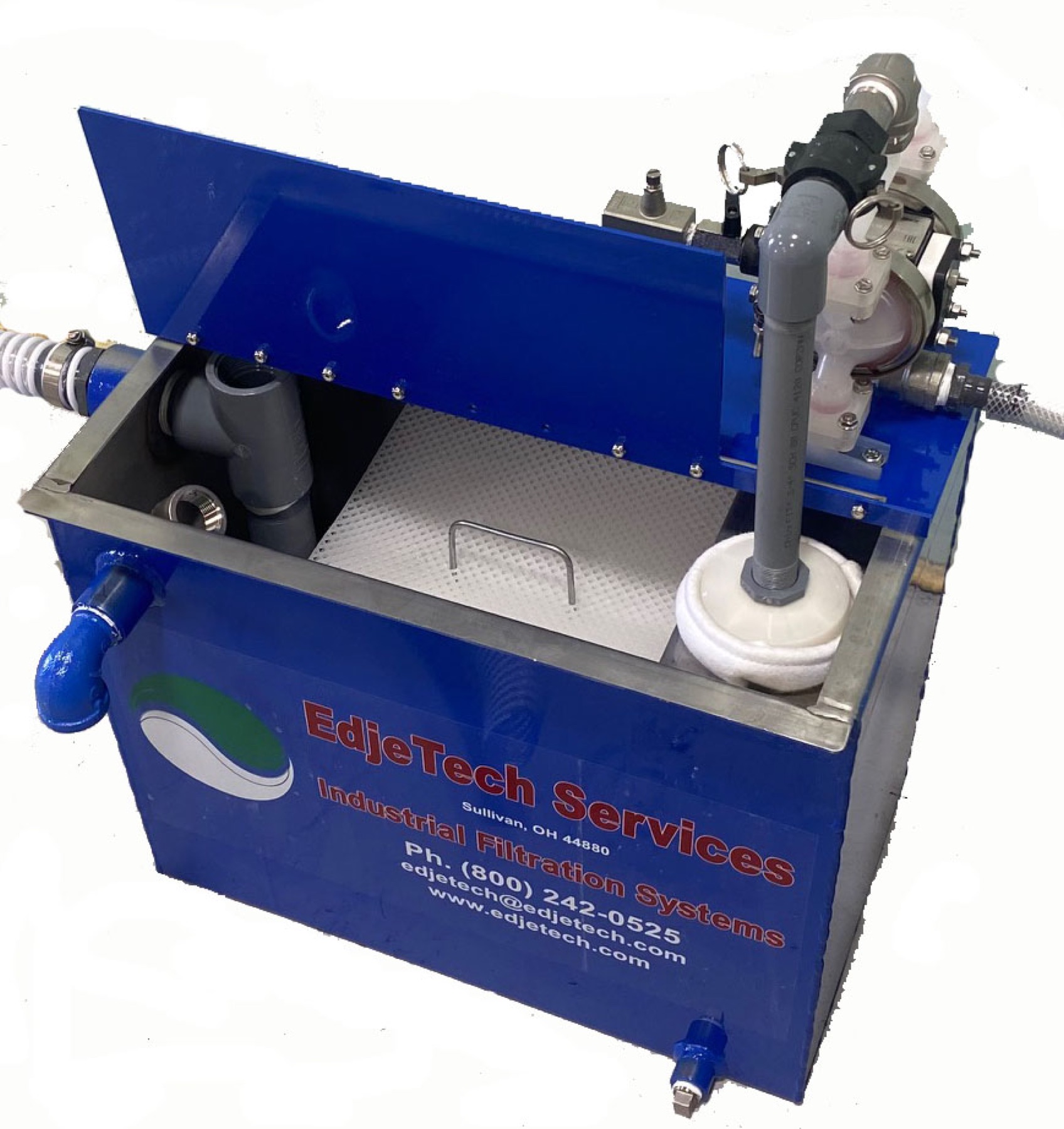

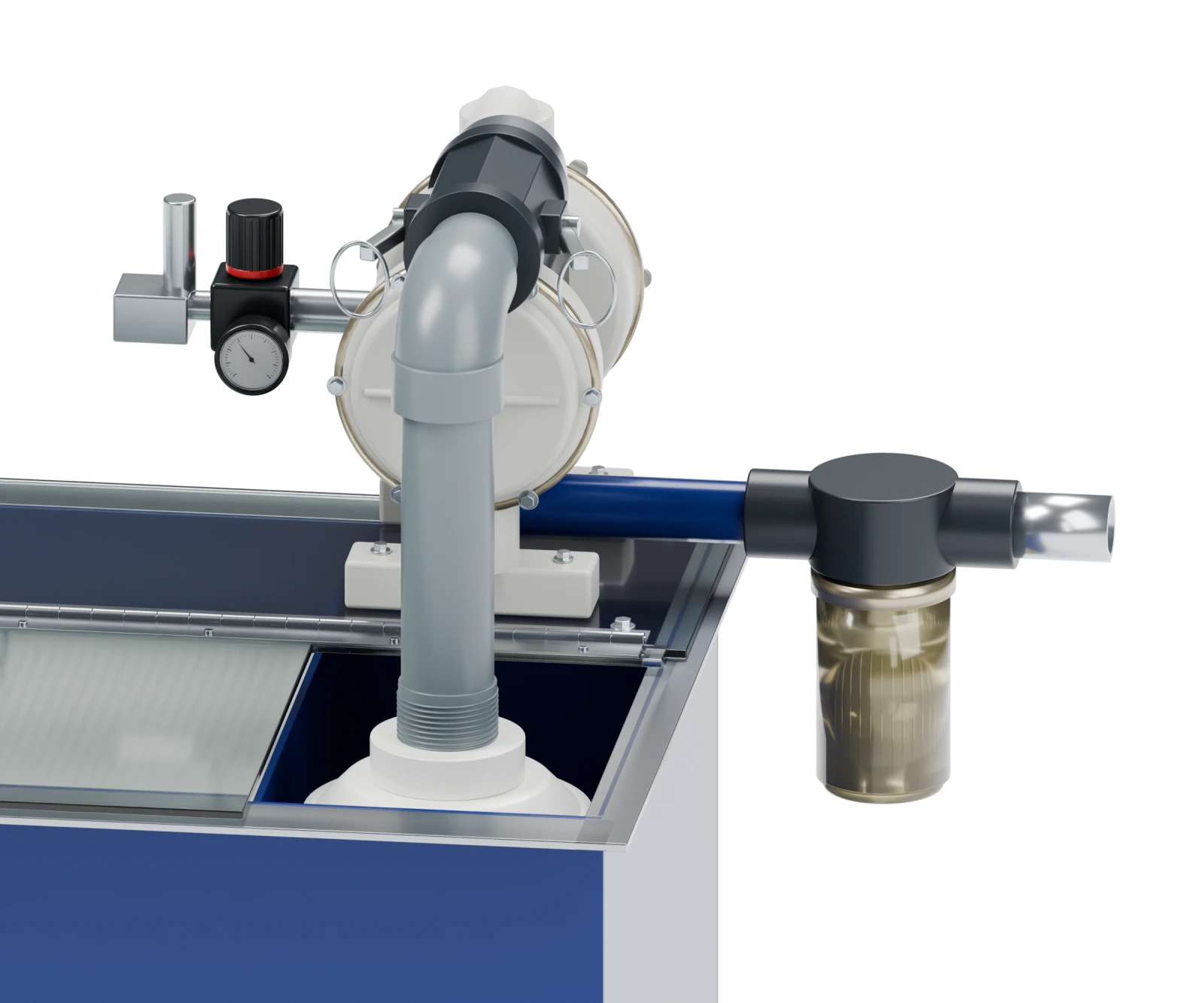

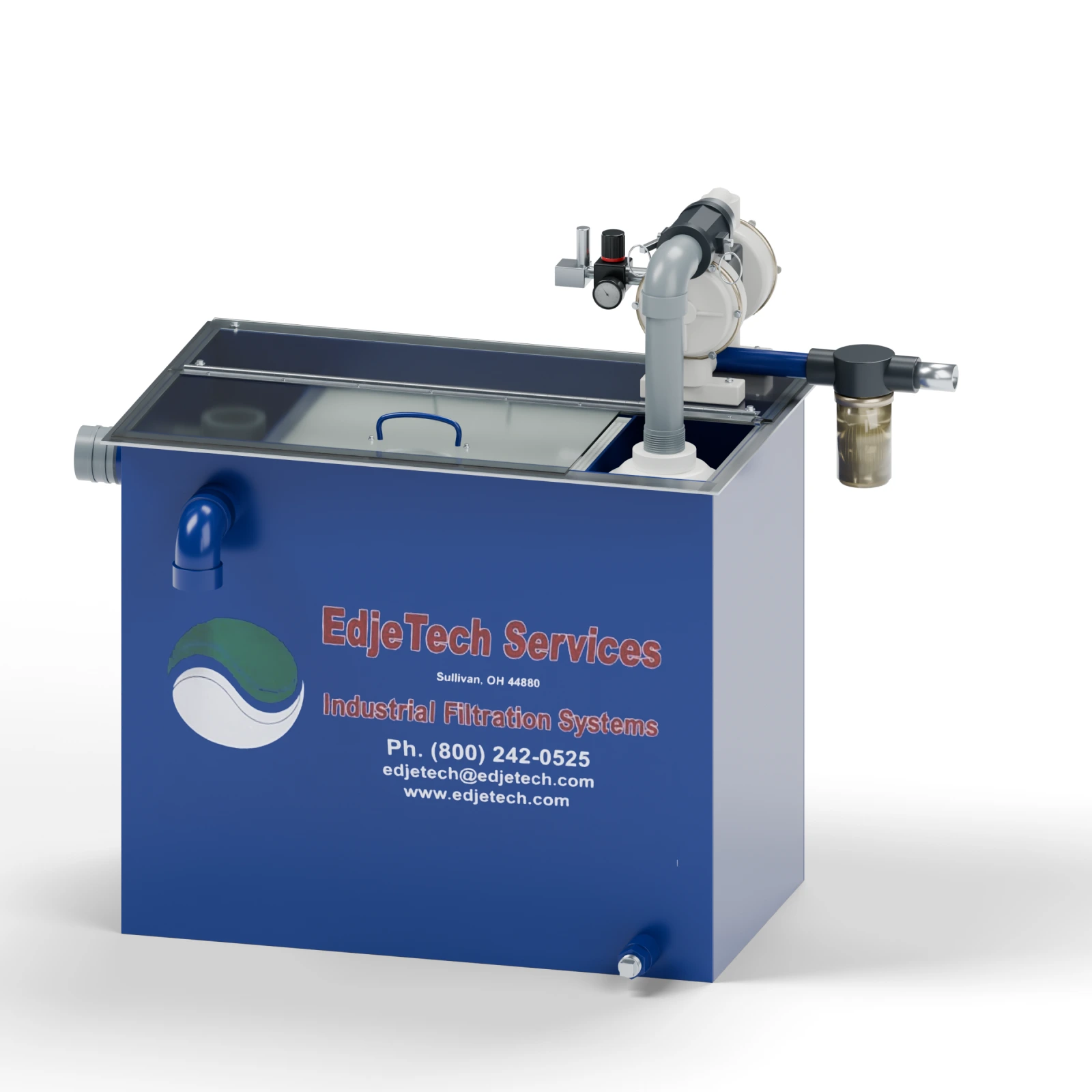

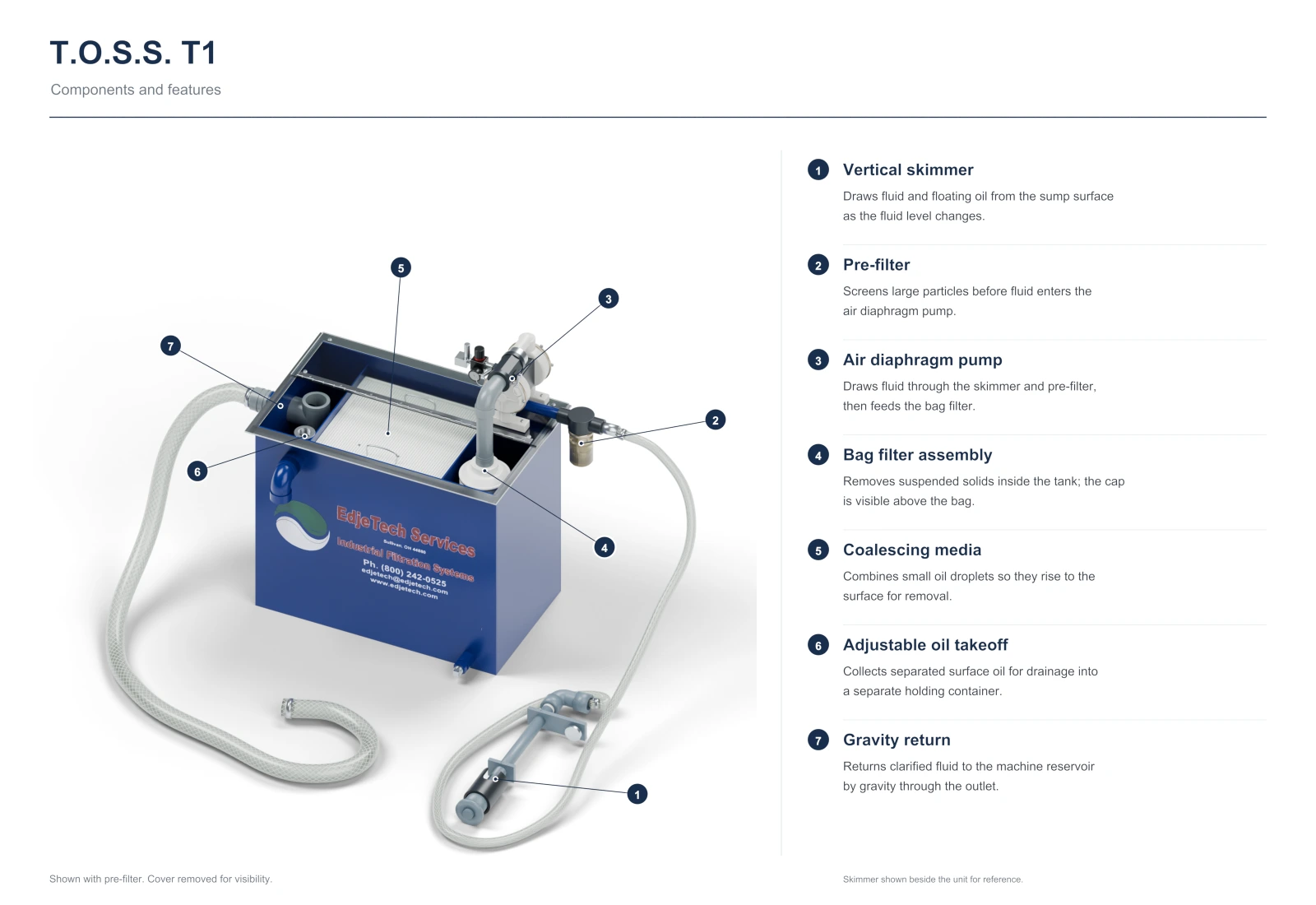

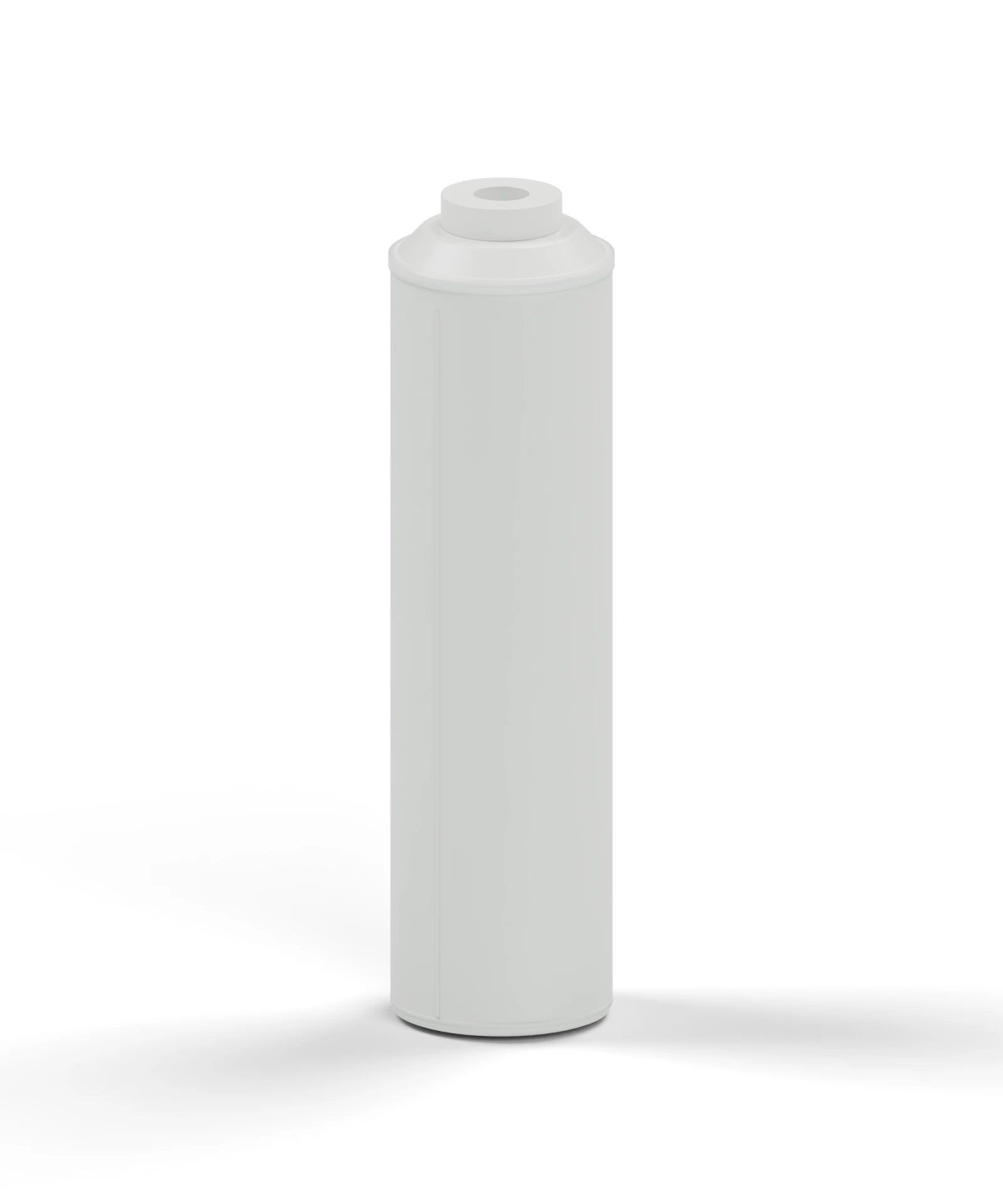

Built to moveAir diaphragm pump, flow-control valve, an 800-micron prefilter protecting the pump, a 100-micron bag filter for solids (1 to 200 micron available), clear lid for checking the oil layer, and a suction skimmer designed for tight spaces, on a self-contained skid.

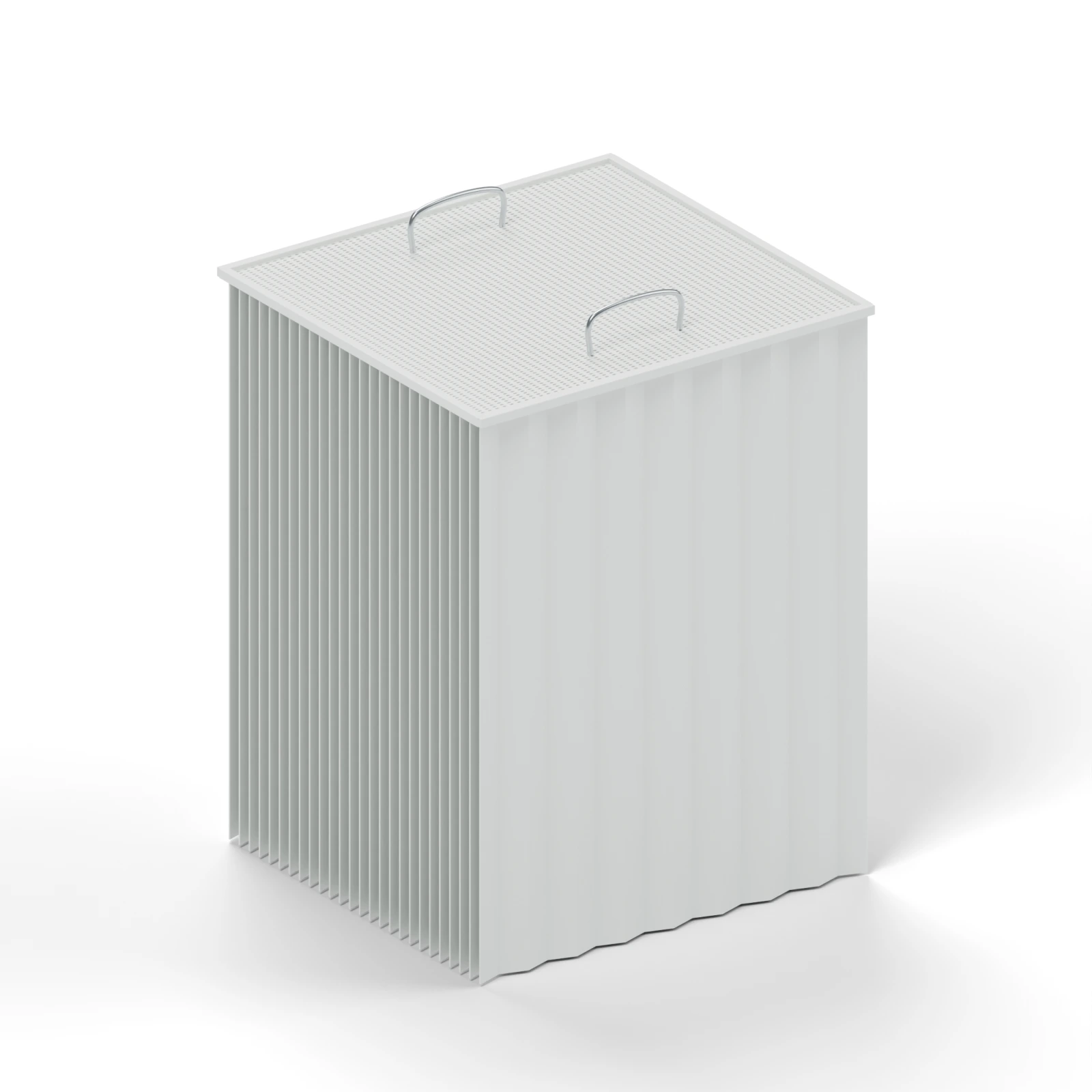

Same coalescing separationThe high-efficiency coalescing media holds tramp oil to less than half of one percent by volume, the same spec as the floor-standing T.O.S.S.
Gravity flow, nylon-reinforced tubingClarified fluid returns to the reservoir through gravity outlets; the separated oil drains to your container.

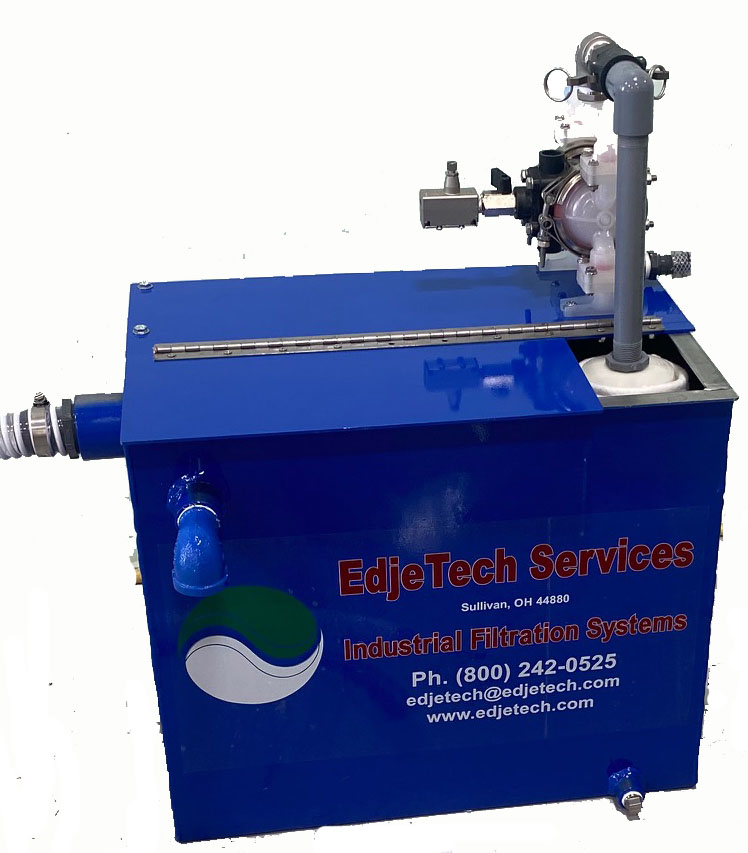

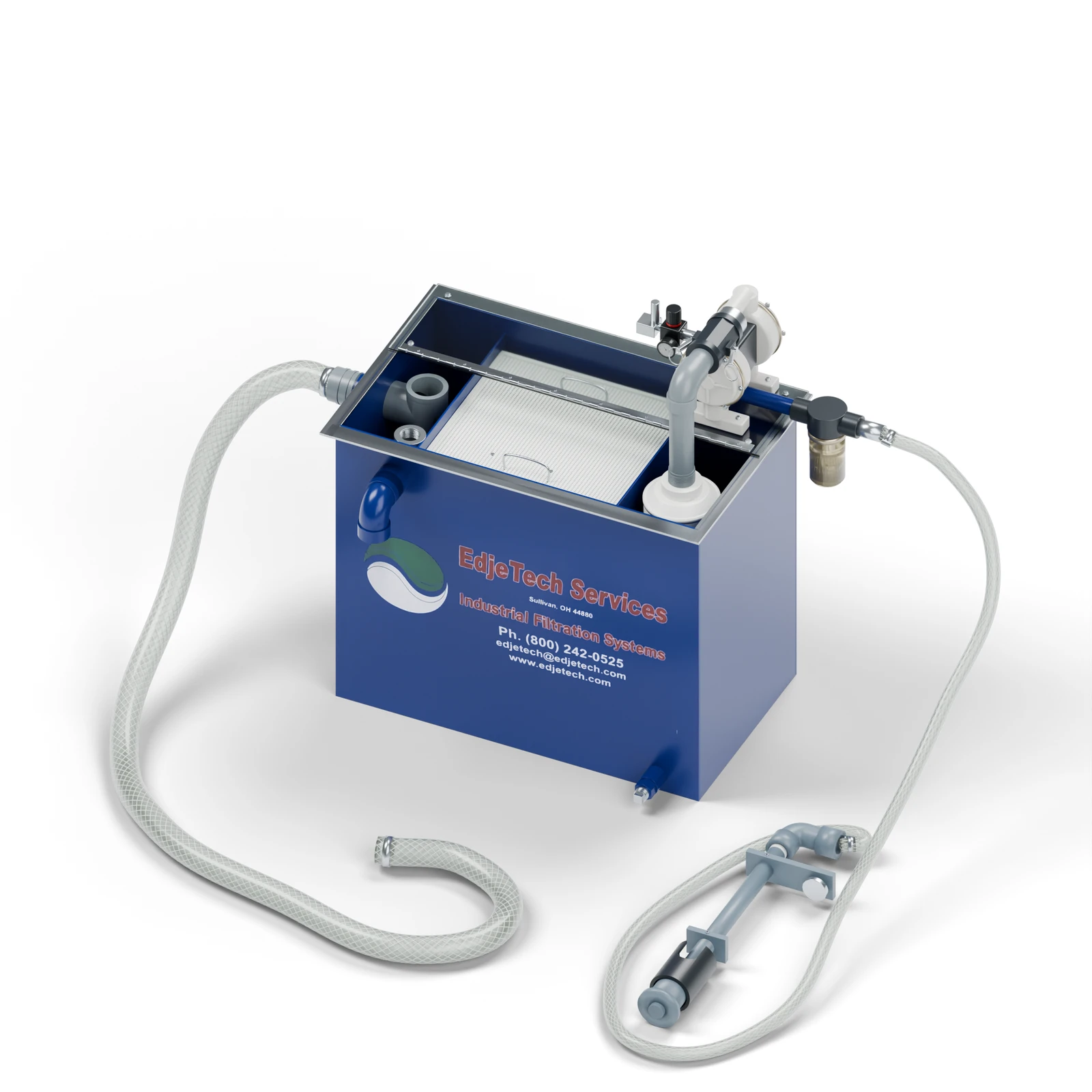

Fully assembled unit

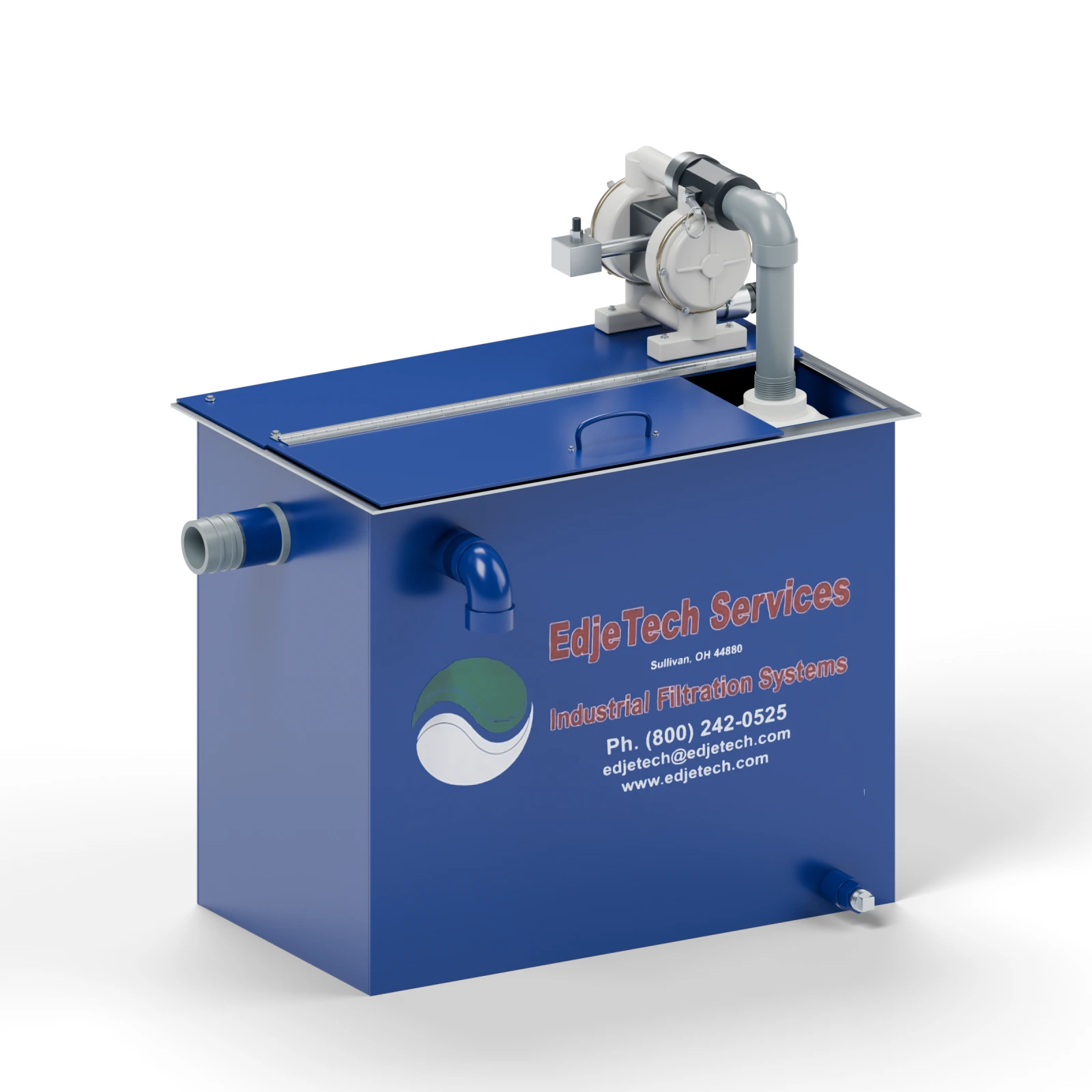

Compact by design

21 in
Length
14 in
Width
25 in
Height

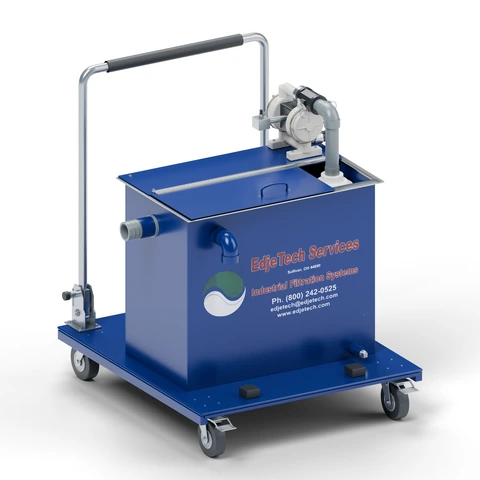

Industrial-grade steel with a chemical-resistant coating on a self-contained skid. The suction skimmer reaches restricted spaces between machines, and portable cart configurations are available.

Model configurations

Six configurations at 2 GPM

All configurations operate on shop air. Skimmer style, cart requirement, and fluid temperature determine the model.

T.O.S.S. T1 portable skimmer configurations
ModelFlowPumpCartSkimmer

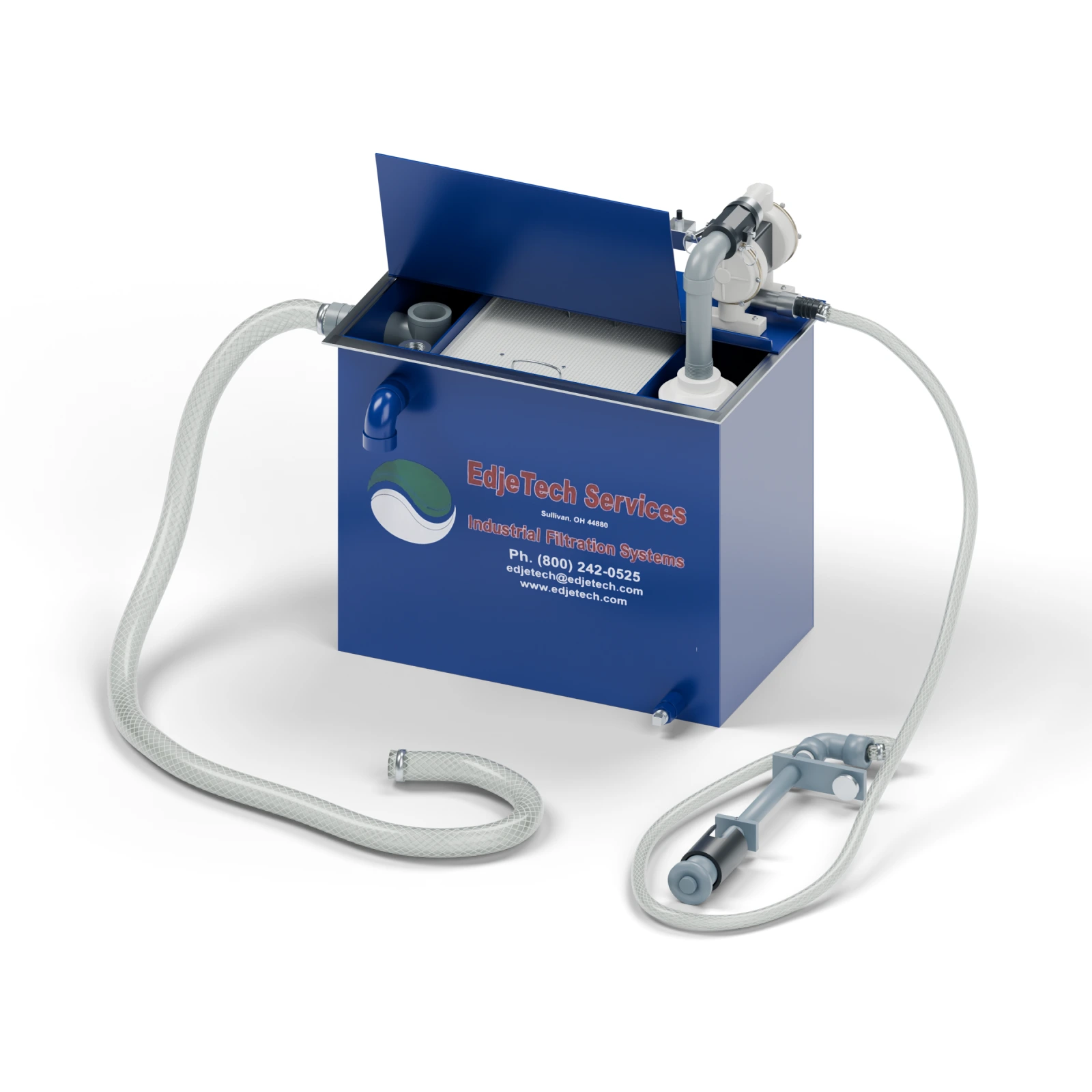

T1-AV2 GPMAirNoVertical

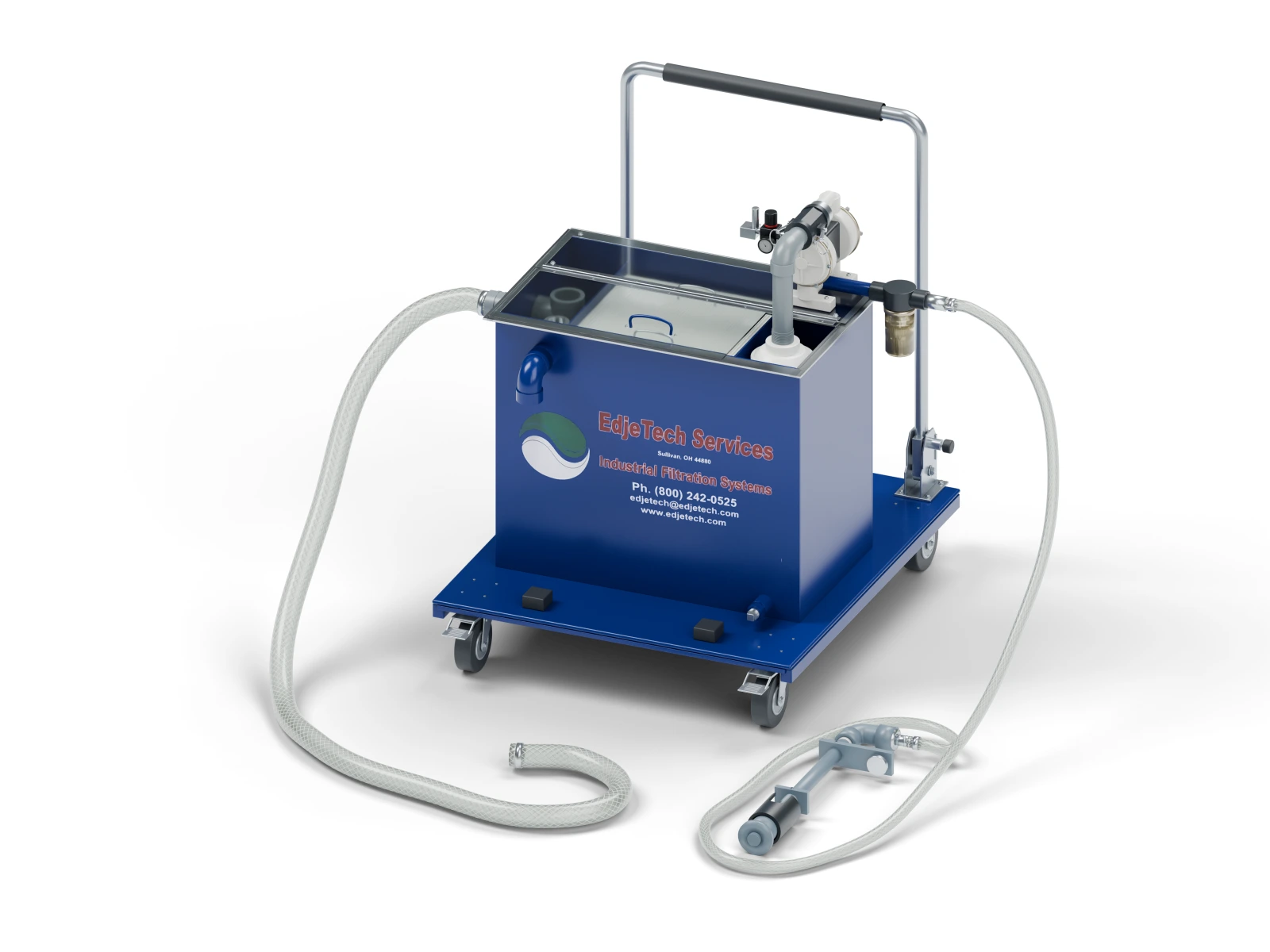

T1-AVC2 GPMAirYesVertical

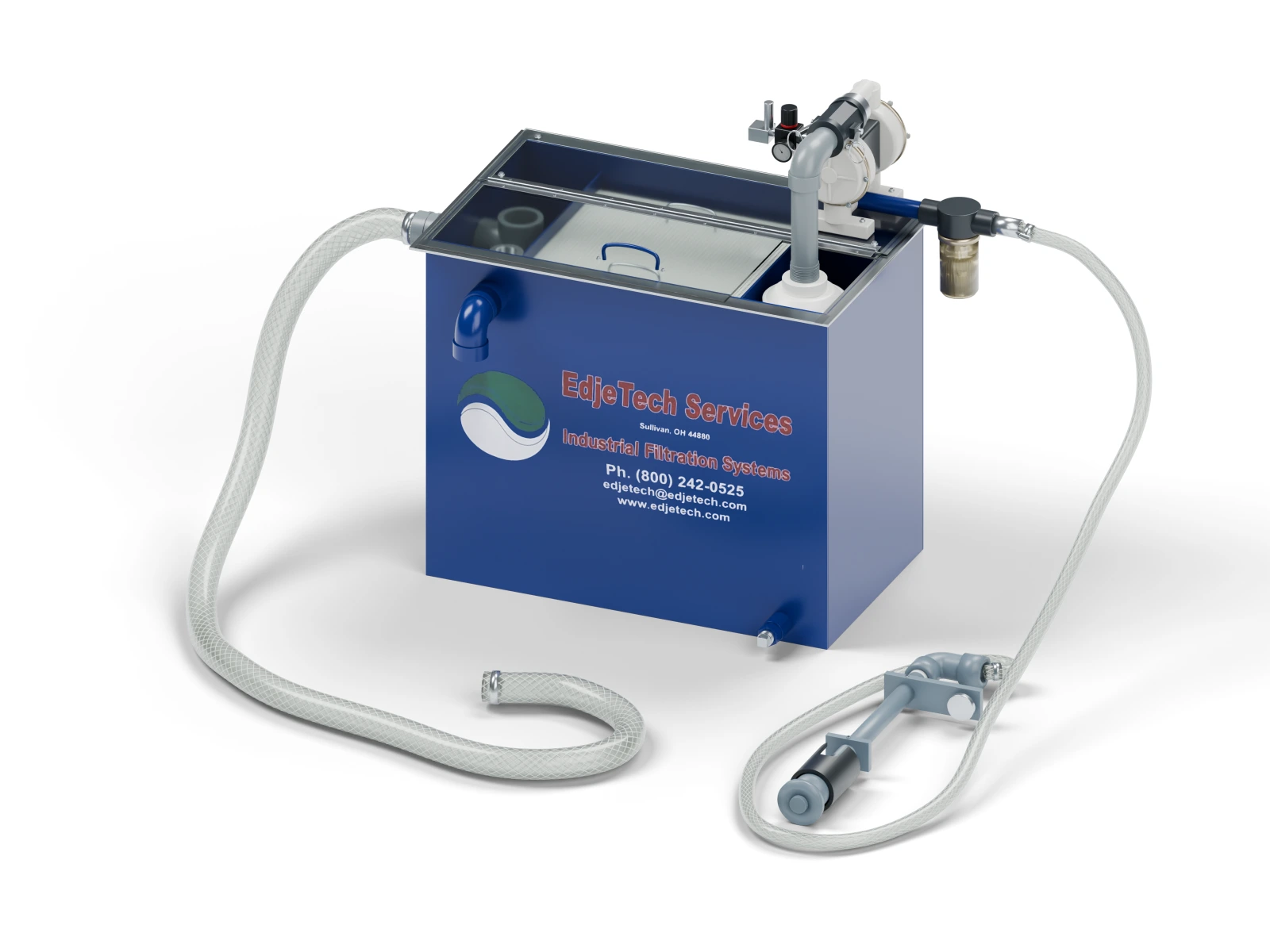

T1-AVH2 GPMAir · high tempNoVertical

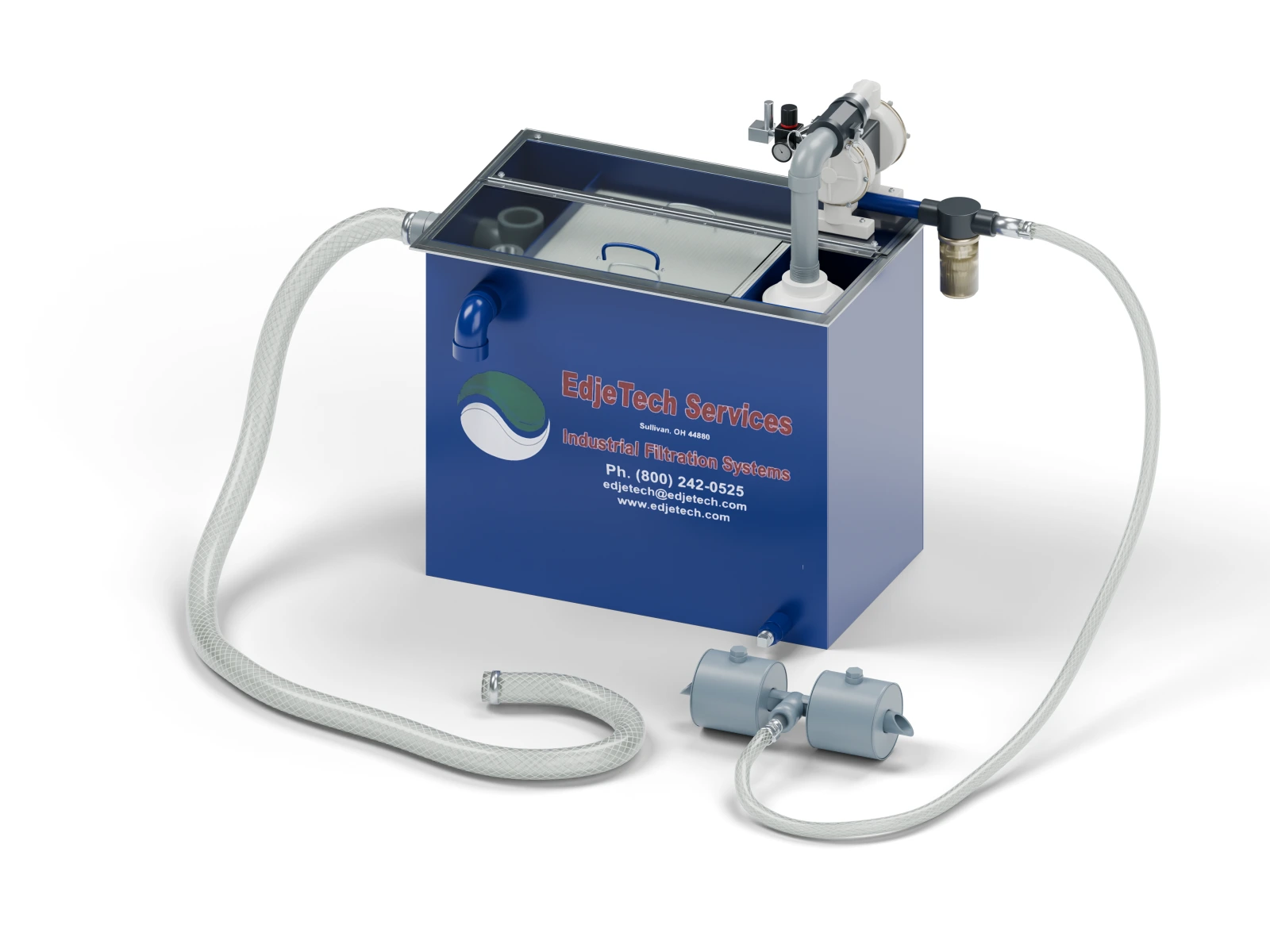

T1-AB2 GPMAirNoBallast

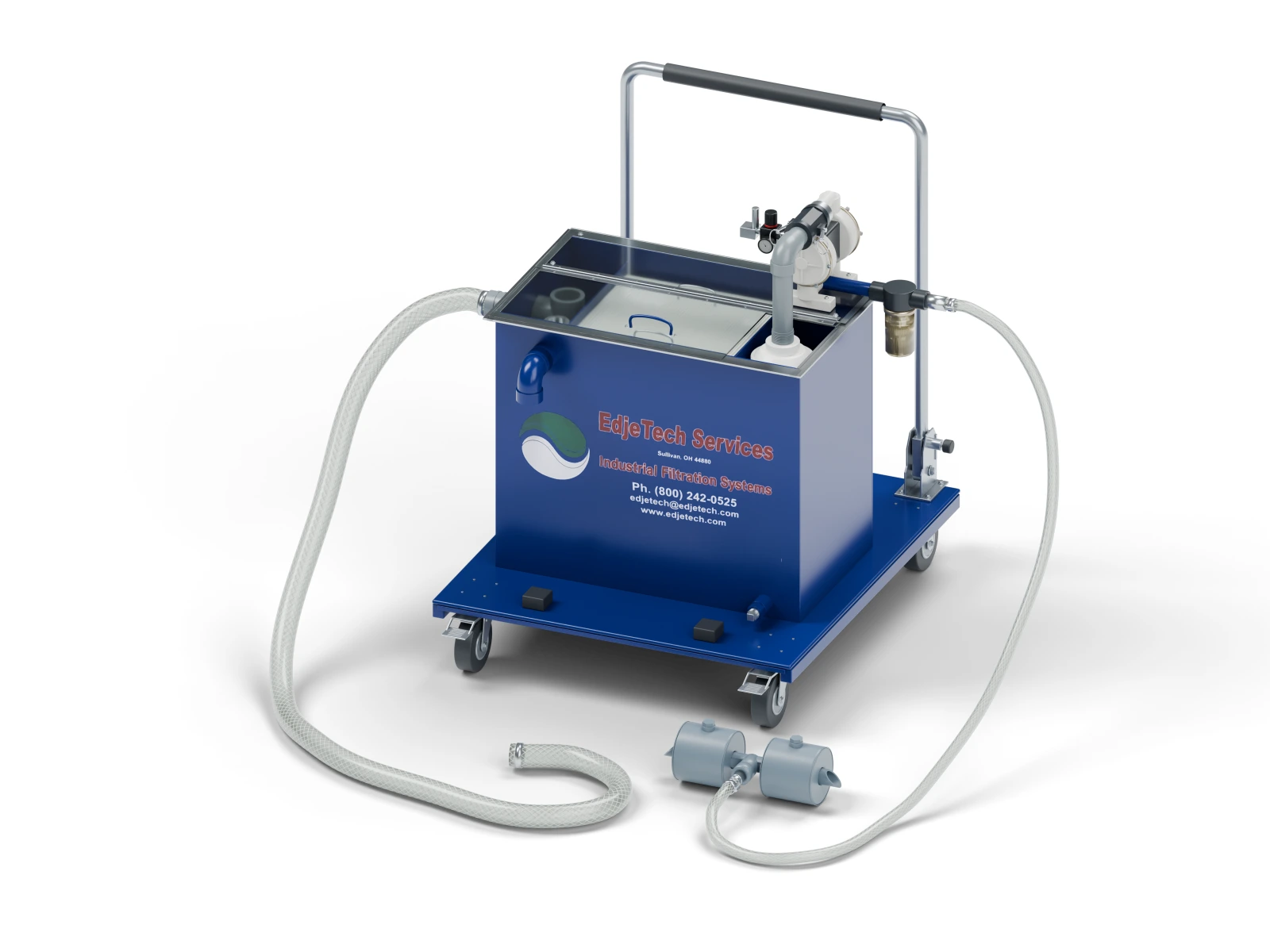

T1-ABC2 GPMAirYesBallast
T1-ABH2 GPMAir · high tempNoBallast

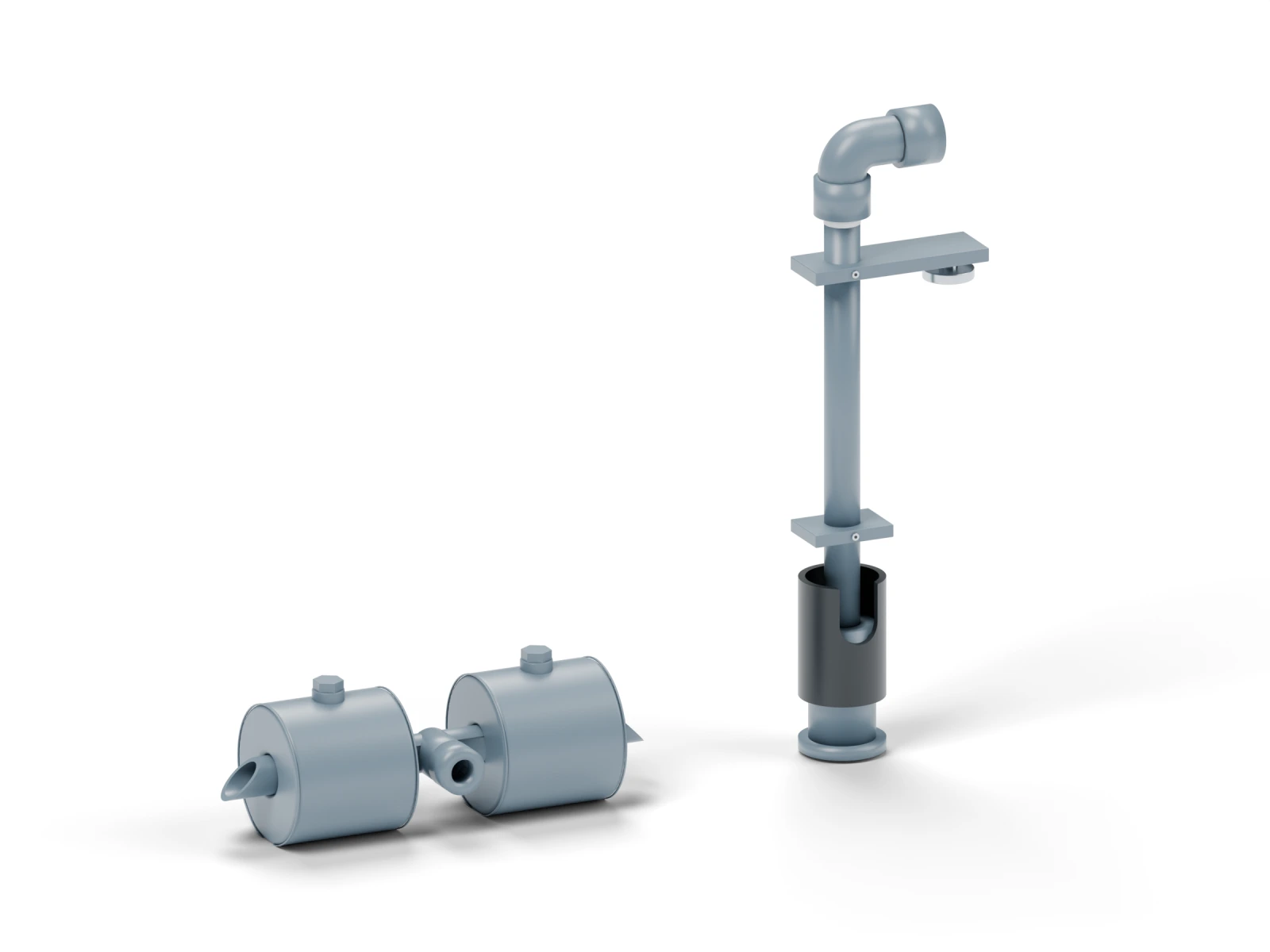

Vertical skimmer for shallow reservoirs; ballast skimmer for deep or large reservoirs. Shop air at about 30 PSI is the only utility, with no electrical connection required. The optional ozone generator replaces routine biocide dosing with automated bacteria control and odor neutralization. Request configuration review →

Applications

Portable tramp-oil separation for individual reservoirs

Built for water-based coolants, synthetics, and alkaline wash water carrying free, dispersed, or loosely emulsified tramp oil.

01Grinding, turning, general machiningIndividual CNC reservoirs requiring tramp-oil control
02Screw machine shopsCoolant sumps on lubrication-heavy work
03Roll forming, cold heading, stampingFerrous and non-ferrous forming fluids
04Tube mill water-soluble fluidsSingle-reservoir tramp-oil control
05Parts washersAlkaline wash water carrying surface oil
06Pre-treatment ahead of fine filtrationMicro, ultra, nano, or reverse-osmosis systems

Tramp-oil control across multiple reservoirs

Facilities with multiple independent sumps or reservoirs can move the T1 between them on a planned schedule. Applications with continuous oil loading may require dedicated T.O.S.S. units. Selection depends on reservoir volume, fluid chemistry, contaminant loading, required treatment rate, and the time available for each reservoir.

What the T1 delivers

Separation performance and operating value

Targeted tramp-oil control for an individual reservoir, with the same separation specification as the floor-standing T.O.S.S. series. Application-specific simple payback can be estimated from the quoted investment and current fluid, disposal, labor, and maintenance costs.

Request a quoteTalk to an engineer →
Separation
<0.5%
Tramp oil held in the treated fluid, by volume
Fluid spend
up to80%
Reduction in new fluid purchases
Disposal
up to90%
Reduction in waste volume
Oil droplets
99%
20-micron droplets separated on the first pass
Specify a T1

Configure the T1 for the reservoir and duty

Provide the number and volume of reservoirs, fluid type, oil loading, required treatment rate, and planned movement between locations.
