The Green Machine vacuums a machine sump at 55 to 70 GPM using shop air, filters the fluid through a bag, and transfers it to the selected destination. A typical sump cleaning that takes a crew about four hours can be completed by one person in approximately 15 minutes.

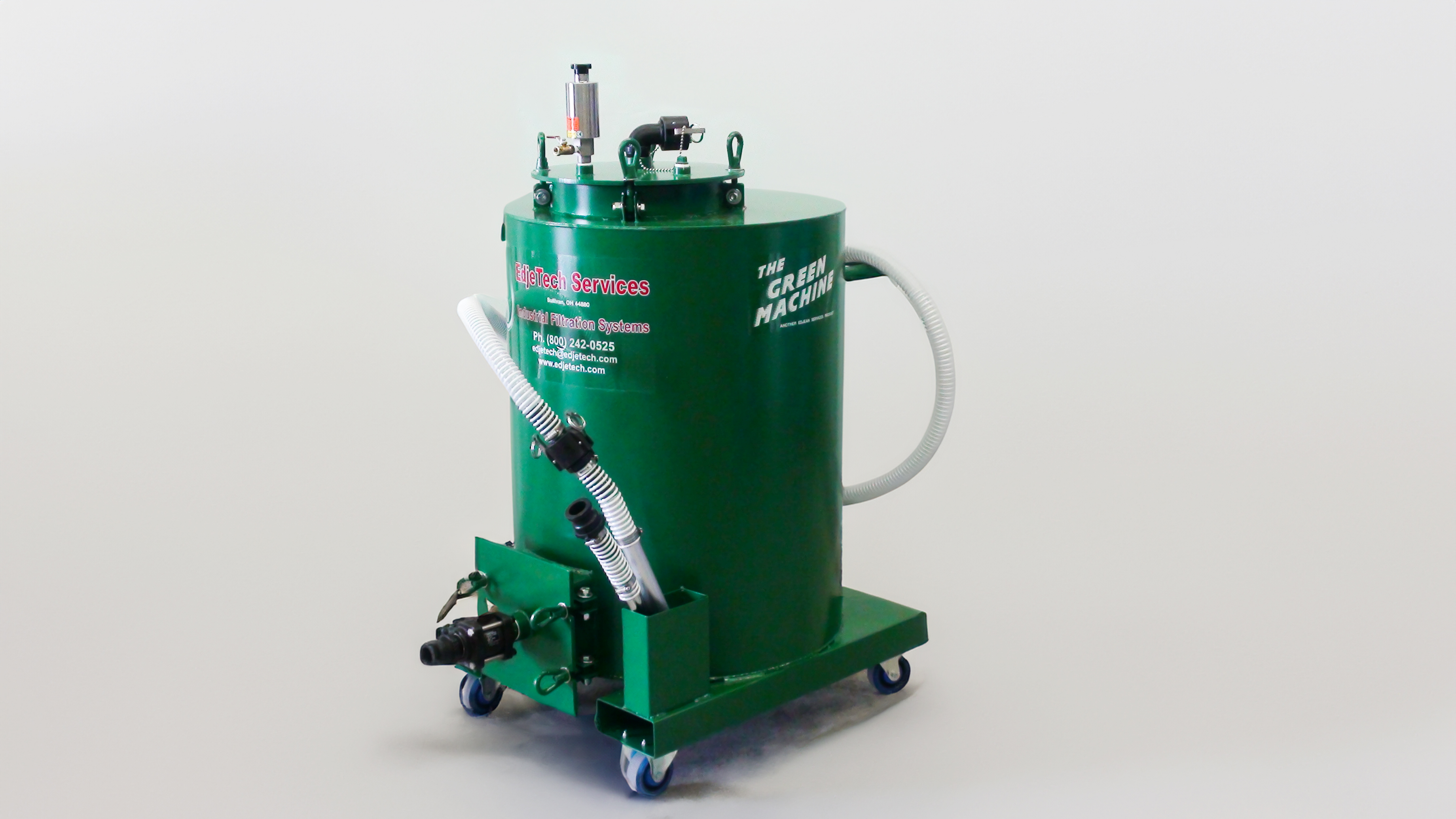

A wheeled tank with an air-powered venturi removes contaminated fluid from a machine sump, filters it during transfer, and discharges it to a recycling station, holding tank, or waste container. The self-contained unit ships ready for service.
The Green Machine reduces sump-cleaning time and manual handling. One person can complete a typical cleaning in approximately 15 minutes, with filter bags as the primary consumable.
Both configurations vacuum, filter, and discharge at the same rate. The DTS adds a clean-fluid tank so the sump can be refilled during the same service cycle.
One tank removes dirty fluid, filters it, and discharges it to a recycling station, holding tank, or waste container.
Choose the single-tank configuration when clean coolant is supplied separately or when the unit transfers dirty coolant to a recycling system.
The first tank collects contaminated coolant, tramp oil, metals, and particulate. The second tank carries clean coolant for immediate sump refill and reduced machine downtime.
Choose the DTS configuration when dirty-coolant removal and clean-coolant refill must occur during the same service cycle.
55 gallons supports smaller sumps and restricted floor space. 90 gallons supports larger sump volumes and fewer discharge cycles. Both capacities are available in single-tank and DTS configurations.
Four casters and an air-powered venturi support movement between machines without an electrical connection or pump priming.

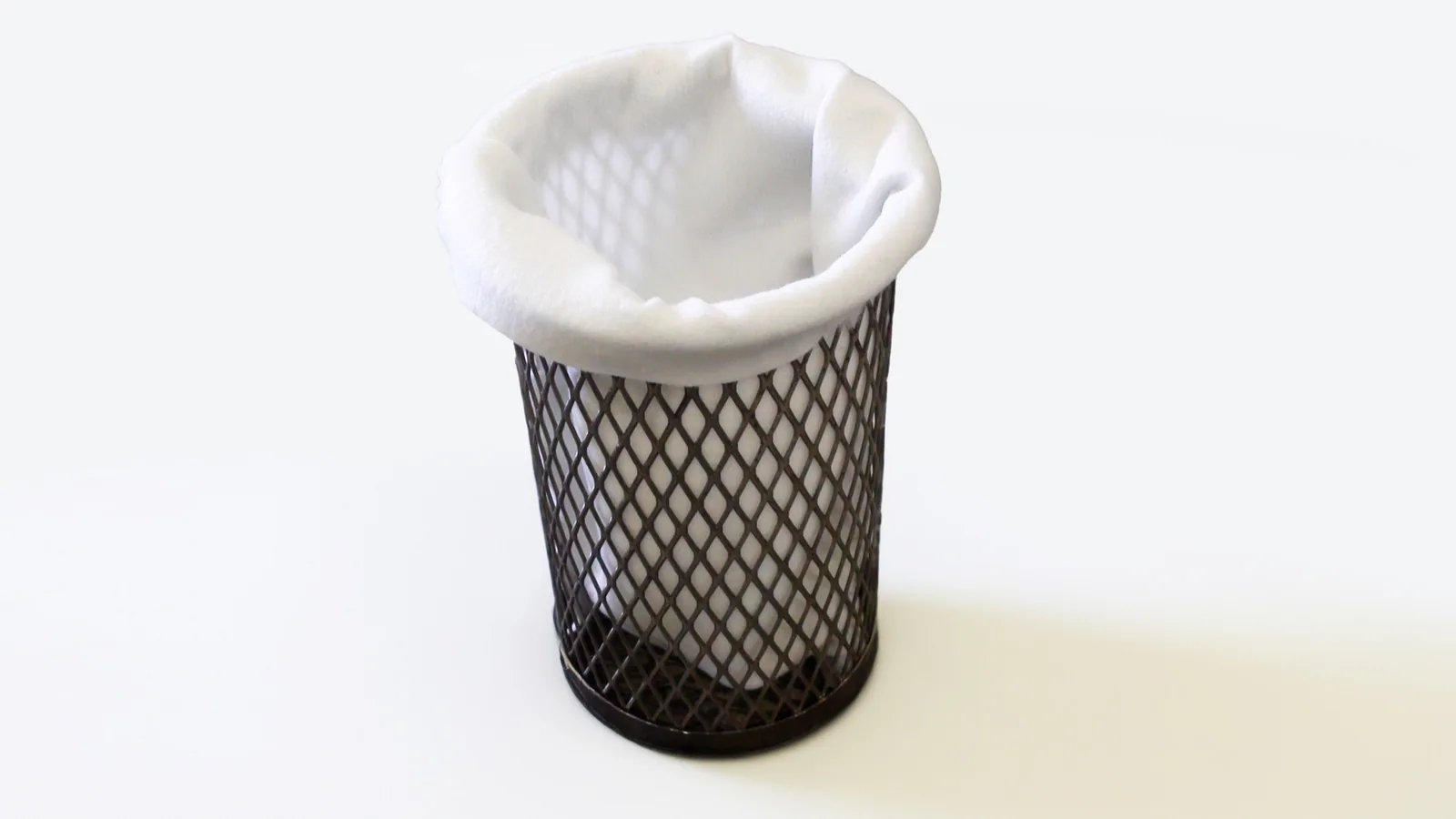

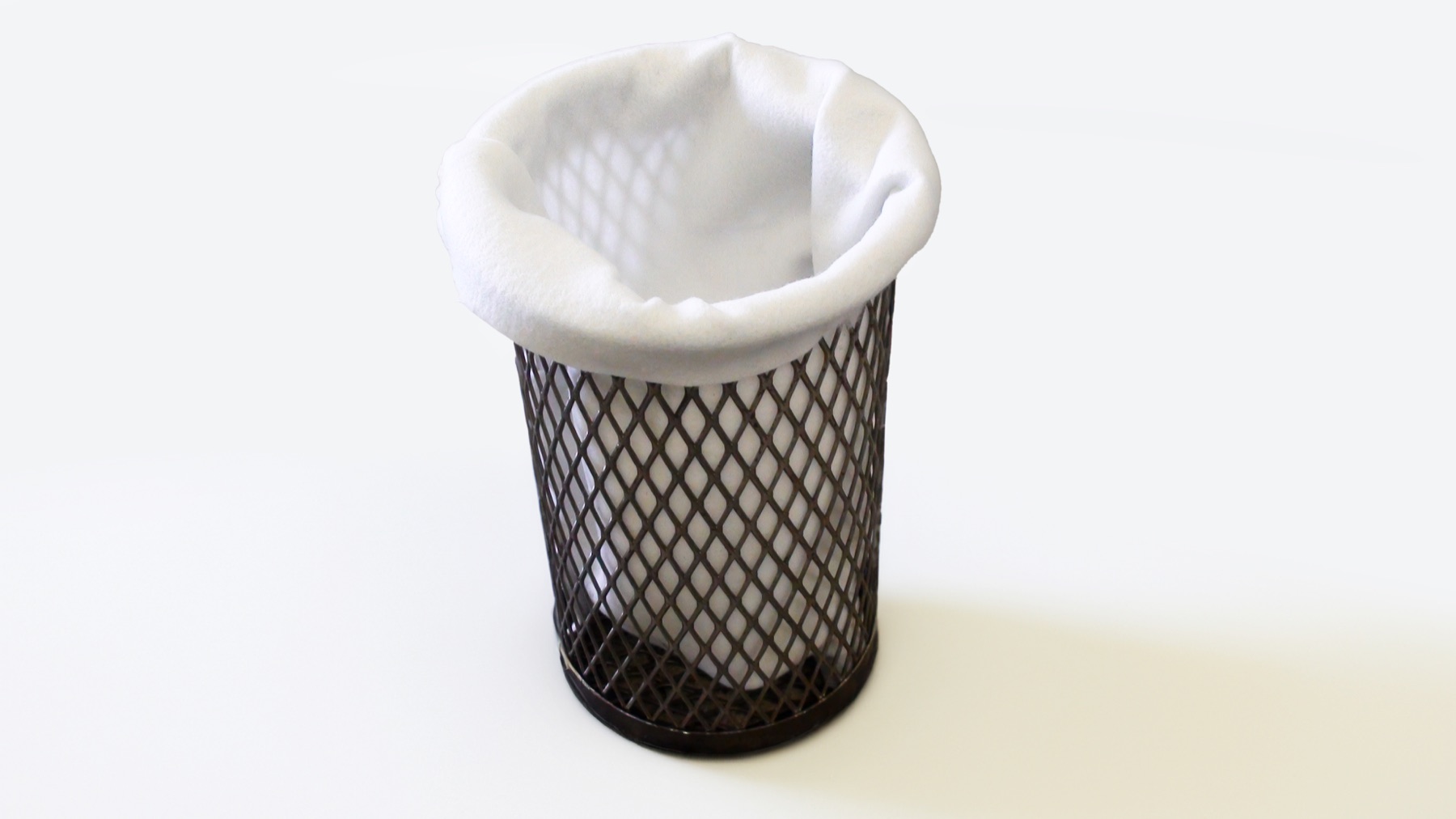

The venturi transfers sump contents at 55 to 70 GPM while the bag filter and chip basket capture particulate.
A high-level check valve stops suction automatically when the tank reaches capacity, eliminating continuous operator monitoring.
Filtered fluid can discharge under air pressure or by gravity. The DTS configuration also carries clean coolant for immediate sump refill.

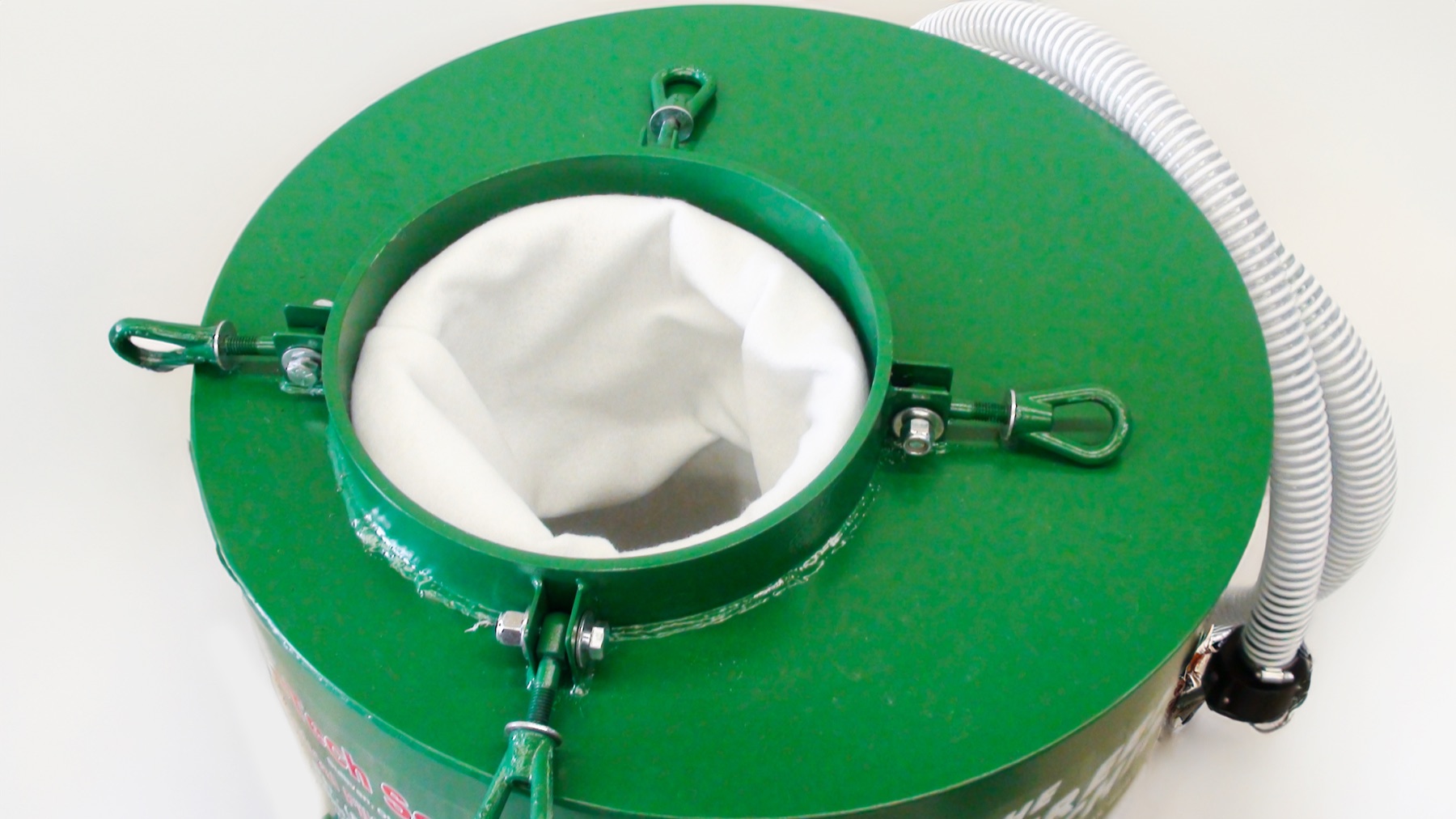

An 8-inch cleanout door provides direct service access, and the onboard holder keeps tools with the unit. The primary consumable is the filter bag.
Capacities sized to your sumps; dimensions and weight are confirmed at quote.
| Spec | Green Machine | Green Machine DTS |
|---|---|---|
| Tank capacity | 55 or 90 gallons (GM55 / GM90) | Same, plus a second 55 or 90 gallon clean-fluid tank |
| Vacuum / discharge rate | 55 to 70 GPM | Same |
| Power | Compressed air, 19 CFM; air-venturi suction and discharge, no electric motor | Same |
| Air supply pressure | 80 PSI minimum; 1/2 in air line, 19 cfm consumption, 80 cfm discharge | Same |
| Filtration | P2 bag filter, 200 micron furnished; 50 to 200 micron available | Same |
| Chip handling | Integrated chip basket for coarse solids | Same |
| Hose | 1-1/2 inch industrial, chemical & abrasion resistant | Same |
| Construction | Heavy-gauge carbon steel | Same |
| Mobility | 4-inch casters (two swivel with brake, two rigid); forklift guides | Same |
| Service access | 8" x 8" clean-out door; on-board tool holder | Same |
| Overfill protection | High-level check valve shuts off suction when full | Same |
| Dimensions / weight | Sized to fit narrow aisles · confirmed at quote | Confirmed at quote |

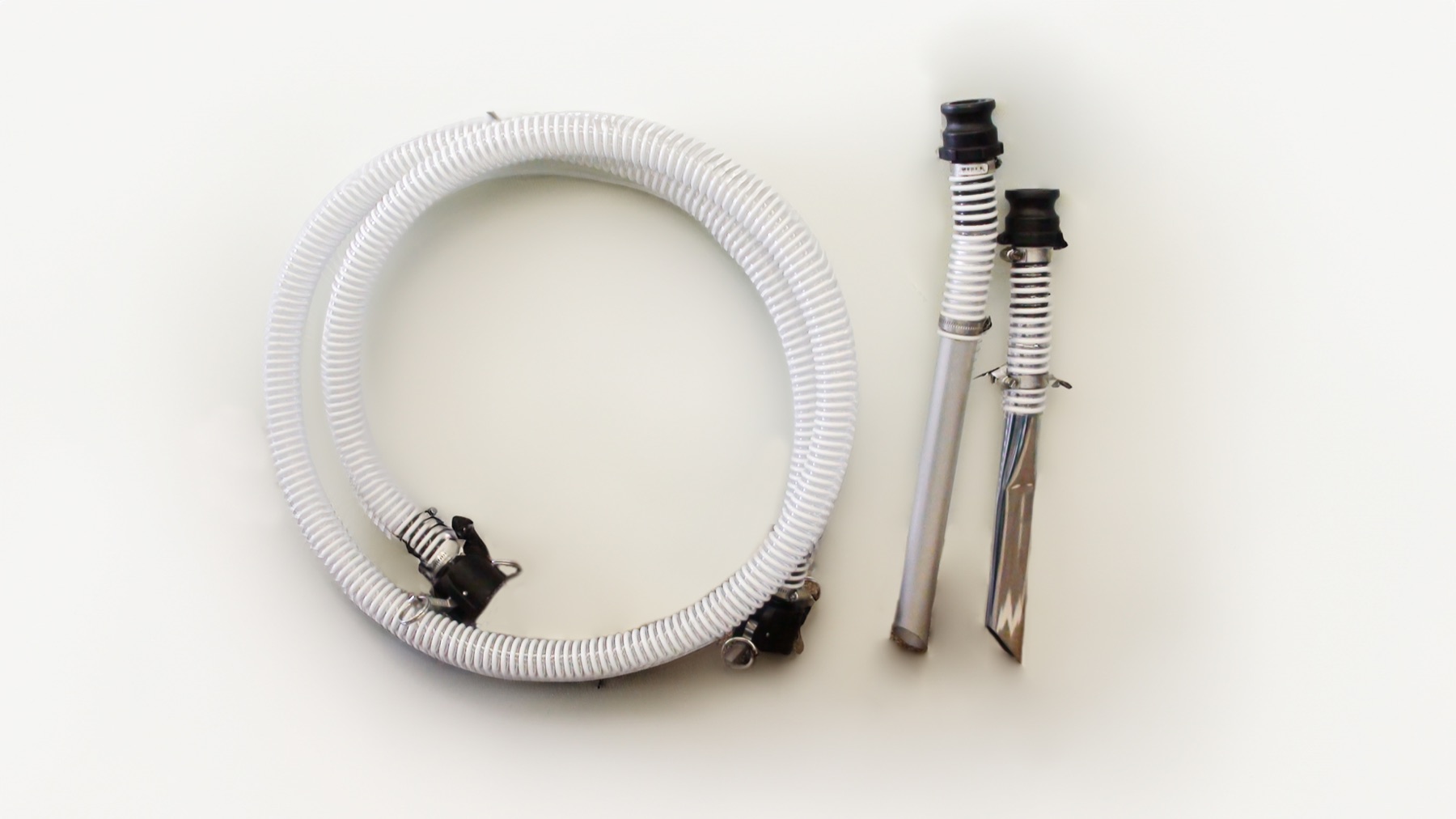

Accessories include a crevice tool and bulk pick-up nozzle. Need the full datasheet or a dimension drawing for an aisle? Request an application review →
The Green Machine can serve as the portable collection device for a C.R.O.S.S. batch-recycling configuration. It removes dirty coolant from individual reservoirs and transfers it to the central recycling station, while clean coolant remains available for immediate use. Other compatible portable transfer devices may also be used.
It is built for water-based coolants and washer-reservoir fluids, and it vacuums surface tramp oil from the sump as it fills. Straight oils and unusual viscosities require a fluid-compatibility review.
Request a compatibility review →The air-venturi drive eliminates electric-motor and impeller-pump maintenance. Routine ownership care centers on the filter bag, chip basket, and accessible tank cleanout. Replacement bags are available from 50 to 200 microns and can be ordered by model.
Filter bags & parts →An air line supplying 19 CFM at a minimum of 80 PSI, plus adequate aisle clearance for the selected model. No electrical connection is required.
Yes. The 55-gallon single-tank configuration supports applications where the collected volume fits within its capacity and aisle space is restricted. EdjeTech sizes the tank capacity to the reservoir volume and transfer routine.
Include the required delivery date in the quotation request. Lead time will be confirmed in the response, and both configurations can be quoted for comparison.
Request a quote →Reorder filter bags by size and micron, and parts by part number, shipped against your model. We still support units installed years ago.
Provide the required tank capacity, single-tank or DTS configuration, quantity, and requested delivery date.
Provide capacity, single-tank or DTS configuration, and quantity. Multiple configurations can be included in one request.
