C.R.O.S.S. central coolant recycling system installed35–40 PSI · clean supplyportable · dirty-coolant transfer99% or greater · system uptime
Application · Central deployment

Central recycling.
Clean coolant,
available immediately.

C.R.O.S.S. receives dirty coolant collected from machine sumps, removes tramp oil and particulate, and maintains clean coolant for immediate use 24/7/365. The optional Coolant Return System pumps clean coolant through facility piping for distribution across the shop.

See the systemsEstimate savings and payback →
up to85%
reduction in new fluid purchases
up to90%
reduction in waste disposal
99.75%
tramp oil & particulate removed, by volume
24/7/365
99% or greater uptime · clean coolant available
Central clean-coolant supply

Clean coolant where the shop needs it

The optional CRS distributes clean coolant from C.R.O.S.S. through facility piping. Dirty coolant is normally collected from individual reservoirs with a Green Machine or another portable transfer device and delivered to the system for processing. A configured dirty-coolant return network can also be engineered where a fully piped arrangement is required.

Clean coolant is distributed under pressureThe CRS pumps clean coolant through the facility at 35 to 40 PSI for convenient access across the shop.
Clean coolant is available 24/7/365C.R.O.S.S. maintains clean coolant for immediate use at 99% or greater system uptime.
Distribution is configured to the facilityWhere clean-coolant piping is not practical, coolant can be returned to machines with portable equipment.
Read the central coolant filtration systems guide →

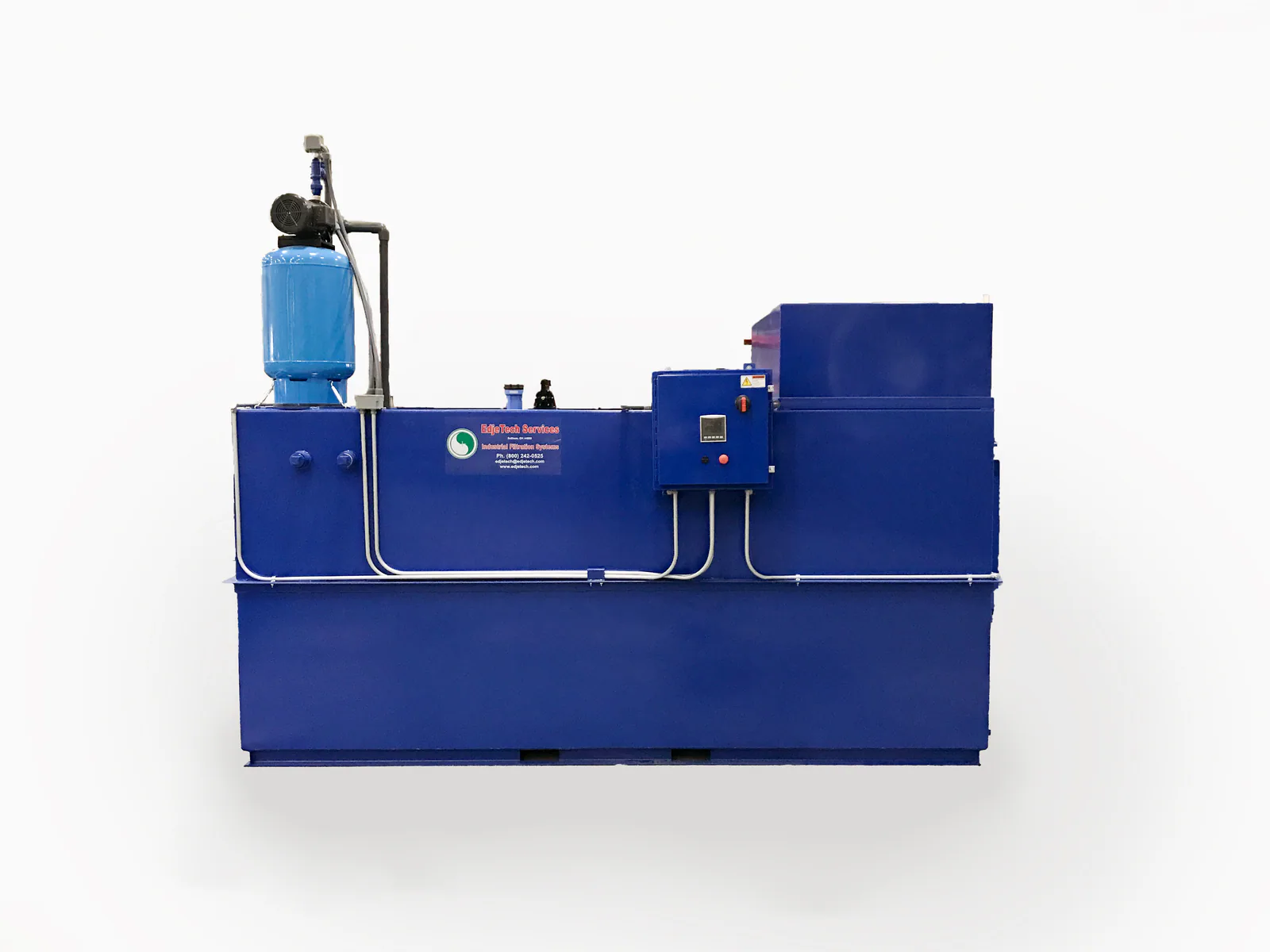

C.R.O.S.S. central coolant recycling system
C.R.O.S.S.
THE RECYCLING STATION · 2–25 GPM
Configuration fit

When central clean-coolant distribution fits

A CRS can reduce manual clean-coolant transport when the facility layout supports distribution piping. Portable or hybrid configurations remain available where piping is not practical.

Central fits when
01New construction or an existing clean-coolant distribution network
02Enough machines in fixed positions to justify the runs
03Machines on a common fluid family
04Clean coolant is needed at multiple points across the shop
Batch or hybrid fits when
05Facility piping is not practical for the current layoutBatch configuration →
06Central piping serves the main production cells, while portable transfer serves remote or secondary machinesHybrid deployment →
07Too few machines, or you want to move machines without re-pipingBatch deployment →
Planning consideration

Central distribution requires facility piping for clean coolant. The layout is planned around required delivery points and operating pressure. Batch or hybrid configurations provide alternatives where a full clean-coolant distribution network is not justified.

How the system operates

Collect dirty coolant and distribute clean coolant

In the standard workflow, portable equipment delivers dirty coolant to C.R.O.S.S. for processing. The optional CRS pumps clean coolant through facility piping, while a configured dirty-coolant return network can be engineered for facilities that require a fully piped arrangement.

Complete C.R.O.S.S. coolant recycling systemC.R.O.S.S. system
Complete C.R.O.S.S. equipment view for central coolant recycling.
C.R.O.S.S. central configuration with clean-coolant distribution to CNC machines and portable dirty-coolant collectionCentral coolant workflow
Portable collection delivers dirty coolant to C.R.O.S.S., while the optional CRS distributes clean coolant to the shop.

Dirty coolant is collected on a planned schedule. Clean coolant remains available immediately rather than requiring operators to wait for each delivered batch to finish processing.

System applications

Coolant recovery systems by operating environment

Machine shops use C.R.O.S.S. to maintain a central supply of clean coolant. Tube and steel mills use TMCRS for real-time filtration engineered around the required mill flow.

≤ 25 GPMC.R.O.S.S. central coolant recycling systemCLEAN-COOLANT DISTRIBUTION · 35–40 PSIC.R.O.S.S.
MACHINE-SHOP CENTRAL RECYCLING

C.R.O.S.S. for machine shops

Coolant Recovery Oil Separation System · central configuration

C.R.O.S.S. is the central coolant recycling system for machine shops. It removes 99.75% of tramp oil and particulate by volume and operates at 99% or greater uptime. Optional ozone provides automated bacteria and odor control, while the optional CRS distributes clean coolant across the shop.

Throughput120–1,500 GPH, six models from the 250 to the 2200
Clean supply35–40 PSI through the optional Coolant Return System
Typical shopsContract and captive CNC shops, precision grinding facilities, and milling operations with shop-wide coolant recovery requirements
View C.R.O.S.S. specs →
Engineered to mill flowTMCRS tube mill coolant recovery systemBUILT TO SPECTMCRS
REAL-TIME MILL COOLANT RECYCLING

TMCRS for tube and steel mills

Tube Mill Coolant Recovery System · permanently integrated

The real-time recovery system for tube and steel mills. Hydrocyclone, magnetic separation, paper-bed filtration, oil/water separation, post-filtration, heat exchange, and cooling operate as an integrated process at the flow rate required by the mill. Recovered oil contains 2% water or less.

CapacityEngineered around the mill's required flow; systems have processed up to 990 GPM and can scale to 1,600 GPM or more
Recovered oil≤ 2% water; potential reclamation or reuse depends on composition, waste classification, and recipient requirements
Typical plantsTube and pipe mills and steel mills, with heavy chip and tube-oil load
View TMCRS specs →
System selection

C.R.O.S.S. provides facility-level coolant recovery, while T.O.S.S. treats coolant at an individual reservoir. Operating scope, coolant volume, contaminant load, and facility layout determine the appropriate equipment.

Compare coolant equipment →
Operating results

What the system delivers

Use your facility's current fluid and disposal costs to estimate potential savings for the selected system.

Estimate savings and paybackTalk to an engineer →
Fluid spend
up to85%
Reduction in new coolant purchases
Disposal
up to90%
Reduction in waste-disposal cost
Separation · C.R.O.S.S.
99.75%
Tramp oil & particulate removed, by volume
Recovered oil · TMCRS
≤2%
Water content; disposition is subject to composition and recipient requirements
Availability · C.R.O.S.S.
24/7/365
Clean coolant at 99% or greater uptime
Payback
Your inputs
Estimate from quoted investment and current fluid, disposal, labor, and maintenance costs
Facility requirements

Clean-coolant piping, power, water, and floor space

Clean-coolant distribution
35–40 PSI supplyThe optional CRS pumps clean coolant through facility piping to the required delivery points.
Electrical & water
Single or three phaseSingle-phase on the 250 and 450, three-phase on the 850 and up. C.R.O.S.S. ships in startup condition, needing only power and a water supply for the proportioner.
Footprint
Sized to flow rateFrom the 250 (about 2 GPM, 120-gallon clean tank) to the 2200 (about 25 GPM, 1,100-gallon clean tank).
Request a fluid compatibility review →Installation & startup →The central filtration guide →
C.R.O.S.S. performance

Reduce coolant consumption and disposal

C.R.O.S.S. removes 99.75% of tramp oil and particulate by volume. Facilities can reduce new coolant purchases by up to 85% and waste-disposal costs by up to 90%.

Results depend on fluid condition, contaminant load, operating practices, and system configuration.

40+ yrsIndustrial fluid-system experience
Engineering reviewCoolant compatibility and system configuration confirmed
99.75%
Tramp oil & particulate
removed, by volume
up to 85%
Reduction in new coolant
purchases, per year
Configuration questions

Planning central coolant recycling

  • 01

    Does clean-coolant distribution have to serve the whole shop?

    No. Clean-coolant piping can serve selected cells while portable equipment supports machines outside the distribution area. This creates a hybrid configuration.

    Hybrid configuration →
  • 02

    Can EdjeTech evaluate my coolant and contaminant load?

    Yes. EdjeTech reviews coolant compatibility, chip load, operating conditions, and required throughput before recommending a system configuration.

    Talk to an engineer →
  • 03

    What information is needed for a quotation?

    Provide the machine count, coolant type, approximate flow or weekly coolant volume, contaminant load, and preferred transfer method. The savings calculator can provide an initial operating-cost estimate.

    Estimate potential savings →
Plan a central system

Define the required flow and distribution.

Review coolant conditions, required throughput, collection methods, and clean-coolant delivery points with an EdjeTech engineer.
